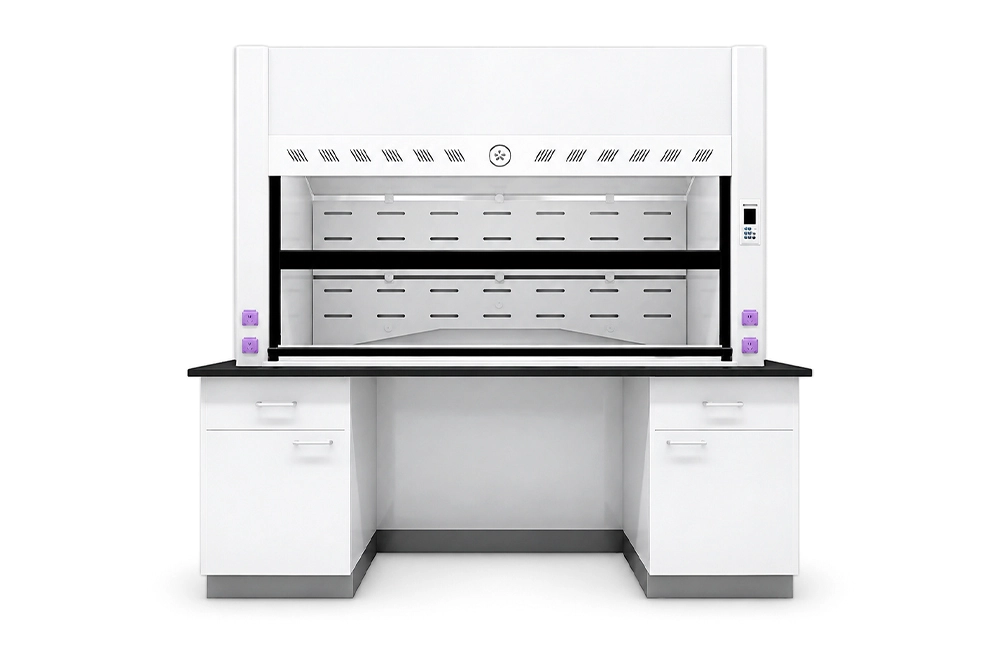

HEWEI TFG-1200-TS Embedding Staining Fume Hood Pathology 1

HEWEI TFG-1200-TS Embedding Staining Fume Hood Pathology 2

HEWEI TFG-1200-TS Embedding Staining Fume Hood Pathology 3

HEWEI TFG-1200-TS Embedding Staining Fume Hood Pathology 4

HEWEI TFG-1200-TS Embedding Staining Fume Hood Pathology 5

HEWEI TFG-1200-TS Embedding Staining Fume Hood Pathology

Certifications:

CE Certified, fully compliant with international safety and quality standards.x

Trade Terms & Shipping:

EXW, FOB. We offer flexible shipping solutions including Sea Freight (FCL/LCL) and Air Freight for bulk orders, as well as International Express for samples

Port of Loading:

Shenzhen, China

MOQ:

1 Unit. As a direct manufacturer, we have no strict MOQ and fully support flexible procurement and sample testing

Lead Time:

20–25 days upon order confirmation

Payment Terms:

T/T (Telegraphic Transfer), L/C (Letter of Credit)

Inquiry

Write a Review

Introduction

Purpose-built for pathology labs, this benchtop fume hood features 1.0mm cold-rolled steel and a 5mm compact laminate liner for industrial-grade resistance to formaldehyde and xylene. Its 3-stage exhaust system ensures a ≥0.5m/s face velocity to swiftly clear hazardous fumes, safeguarding operator health.

Lightweight, fully integrated, and installation-free—ready to use out of the box for any medical or research workspace

Customized Packaging

Available as Fully Assembled or Disassembled units (to optimize container space and minimize shipping costs). Options include:

1.EPE Foam + Stretch Film.

2.Export Wooden Case (Recommended for international transit).

3.Domestic Wooden Frame.

Product Specification

Model	External Dimensions (W×D×H)	Internal Dimensions (W×D×H)	Exhaust Volume (at 0.5m/s)
HEWEI TFG-1200-TS	1200×850×1500 mm	900×750×1200 mm	~1000 m³/h
HEWEI TFG-1500-TS	1500×850×1500 mm	1200×750×1200 mm	~1500 m³/h
HEWEI TFG-1800-TS	1800×850×1500 mm	1500×750×1200 mm	~1800 m³/h

Parameter Category	Detailed Specifications
Main Body Material	1.0mm premium cold-rolled steel
Inner Liner & Baffle	5mm thick compact laminate (Highly resistant to corrosion, formaldehyde, and xylene)
Surface Treatment	CNC stamped/bended; Acid-washed, phosphated, and coated with epoxy resin electrostatic powder (Coating thickness ≥75μm)
Operating Face Velocity	0.35 - 0.6 m/s (Stable operation designed at ≥0.5m/s with uniform airflow and no dead zones)
Glass Door Opening	650 - 700 mm
Aerodynamic Design	Professional 3-stage baffle exhaust system
Standard Configuration	Smart one-touch control panel, 1×30W concealed LED lighting, Lab-specific splash & corrosion-proof sockets
Optional Accessories	Full-screen touch panel, VAV (Variable Air Volume) valve, Venturi valve
Installation Type	Floor-free benchtop design (Placed directly on standard lab counters; no complex assembly required)
Customization (OEM)	Non-standard dimensions and specialized parameters are available upon request

Core Product Features

Space-Optimized Benchtop Architecture

Designed to sit seamlessly on standard laboratory counters, this compact unit requires zero floor space, perfectly adapting to space-constrained pathology labs and multi-station teaching environments.

Industrial-Grade Anti-Corrosion Materials

Constructed with a robust 1.0mm cold-rolled steel main body and 5mm thick compact laminate for the inner liners and baffles, providing long-lasting resistance against highly corrosive chemical reagents like formaldehyde and xylene.

Targeted & Efficient Fume Extraction

Equipped with a professional 3-stage exhaust design that ensures a stable operating face velocity of ≥0.5m/s. It rapidly extracts toxic gases to comprehensively safeguard operators' respiratory health.

Plug-and-Play Full Integration

Boasting 100% functional integration from the factory, it features built-in splash-proof sockets, a smart touch control panel, and concealed LED lighting. Ready to use out of the box, it entirely eliminates extra accessory procurement and setup costs.

Flexible Sizing & OEM Customization Support

Beyond our standard widths of 1200mm, 1500mm, and 1800mm, we leverage our direct manufacturing facility advantage to offer in-depth customization for dimensions and technical parameters, tailored to your exact spatial constraints and core requirements.

Application

Forensic Identification & Public Security Criminal Investigation Laboratories

Employed for pathological and physical evidence inspection; the benchtop design adapts to laboratory space layouts while quickly discharging harmful gases.

Biopharmaceutical & Medical Device R&D/QC Laboratories

Applied in biological tissue sample processing, medical device biocompatibility testing, and pathology-related R&D experiments.

University & Research Institutes (Pathology & Life Sciences Labs)

Used for histology experiments, pathological slide preparation, and scientific sample pretreatment.

Third-Party Medical Testing Institutions & Independent Pathology Diagnostic Centers

Utilized for routine pathology and molecular pathology testing, meeting the daily processing demands of large-batch pathological samples while adapting to industrial inspection workflows.

Hospital Pathology & Clinical Laboratories

Designed specifically for routine pathology operations such as tissue embedding, sectioning, and staining; it rapidly exhausts hazardous volatile gases like formaldehyde and xylene commonly used in pathology experiments.

FAQ About HEWEI TFG-1200-TS Embedding Staining Fume Hood Pathology

Q: What are the standard dimensions and models of the HEWEI embedding/staining fume hood?

Based on standard manufacturing specifications, it is available in three regular sizes:
1200mm Model (HEWEI TFG-1200-TS): External dimensions
1200×850×1500 mm, internal dimensions 900×750×1200 mm.
1500mm Model (HEWEI TFG-1500-TS): External dimensions
1500×850×1500 mm, internal dimensions 1200×750×1200 mm.
1800mm Model (HEWEI TFG-1800-TS): External dimensions
1800×850×1500 mm, internal dimensions 1500×750×1200 mm.
Note: Non-standard custom dimensions are available upon request.

Q: What is the exhaust volume and face velocity of the HEWEI embedding/staining fume hood?

Face Velocity: The operating face velocity ranges between 0.35−0.6 m/s, with an exhaust volume of approximately 0.5 m/s when the glass door is fully open. Exhaust Volume: Approx. 1000 m³/h for the 1200 model, 1500 m³/h for the 1500 model, and 1800m³/h for the 1800 model.

Q: How does the HEWEI negative pressure system prevent hazardous gas leakage?

The fume hood draws in air from the exterior via a negative pressure system, creating a negative pressure environment inside the cabinet that effectively prevents the spread of toxic and hazardous substances to protect operators. Air enters from the front opening, passes through the working zone to carry away harmful gases, smoke, and particulates generated during experiments, and is then discharged through the top exhaust port.

Q: What are the optional accessories available for the HEWEI embedding/staining fume hood?

Available optional accessories include a full-screen touch panel, VAV (Variable Air Volume) valve, and Venturi valve. Standard specifications feature a glass door height of 650−700 mm and a 30W×1 daylight/LED lighting setup.
